GA Series

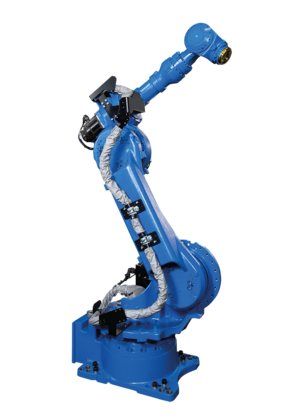

GA50
6-axis robot for high precision Laser Welding, Cutting & Cladding
Overview
The MOTOMAN GA50 robot is designed for applications that require high precision and path accuracy, such as 3D laser welding or cutting. It provides a payload of 50 kg and a high reach of 2,038 mm, which allows processing of large workpieces using common laser heads.
In combination with the advanced Sigma-7 servo drive technology and tolerance-optimized precision gearboxes, this manipulator achieves very high positioning and path accuracy paired with high mechanical stiffness.
The MOTOMAN YRC1000 high-performance robot controller offers a wide range of path-related programming functions, interfaces and communication options for integrating the robot.
Technical Details
- Number of Axis
- 6
- Payload
- 50 kg
- Max Working Range
- 2038 mm
- Repeatability
- 0.01 mm
- Weight
- 855 kg
- Power Supply
- 4.5 kVA
- Maximum Speed S Axis
- 150 °/s
- Maximum Speed L Axis
- 150 °/s
- Maximum Speed U Axis
- 150 °/s
- Maximum Speed R Axis
- 250 °/s
- Maximum Speed B Axis
- 250 °/s
- Maximum Speed T Axis
- 250 °/s
- Mounting Options
- Floor
- Further Specifications
- x No
